Chimneys
Fumena chimney systems – universal and among the best chimney solutions on the market.
Fumena Ceramic Chimney System
Maximum safety. Longevity. Easy installation.
Fumena is a high-class ceramic chimney system designed for both modern and traditional heating appliances. It ensures stable operation even at low flue gas temperatures and is suitable for intensive, long-term use.
Why choose Fumena?
✔ Universal application
Suitable for solid and liquid fuel appliances – both modern and traditional.
✔ Resistance to extreme conditions
Ceramic pipes (A1N1/B2N1) withstand temperatures from 30°C to 600°C and are resistant to soot fires.
✔ Long-lasting solution
Resistant to moisture, acidic condensate, and aggressive corrosion factors.
✔ Stable draft and clean operation
Smooth inner surface reduces deposits and improves chimney efficiency.
✔ Fast and easy installation
Specially profiled insulation ensures precise fitting of elements and significantly simplifies installation.
✔ Highest quality standards
Complies with EN 13063-1, EN 13063-2, and EN 13063-3 requirements, CE certified.
Technical Solution
- Three-layer construction with full mineral wool insulation
- High-quality ceramic chimney pipes
- Lightweight concrete block system for structural stability
- Designed for safe and long-term operation
Result: a safe, reliable, and professional chimney solution that lasts for years without compromise.
Types of Fumena Chimney Systems

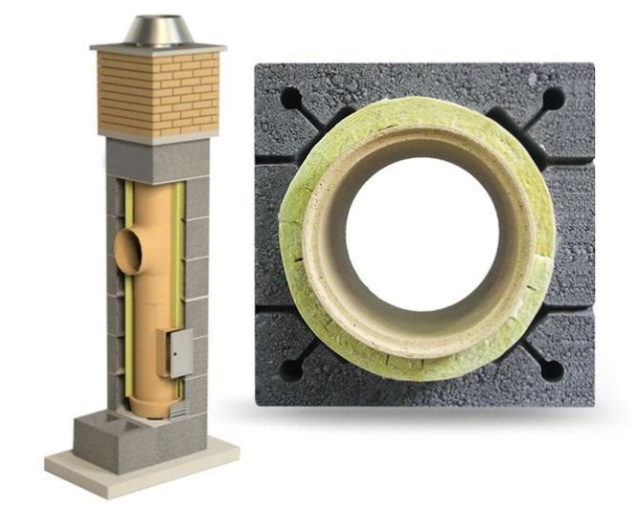

Chimney without ventilation (360x360)

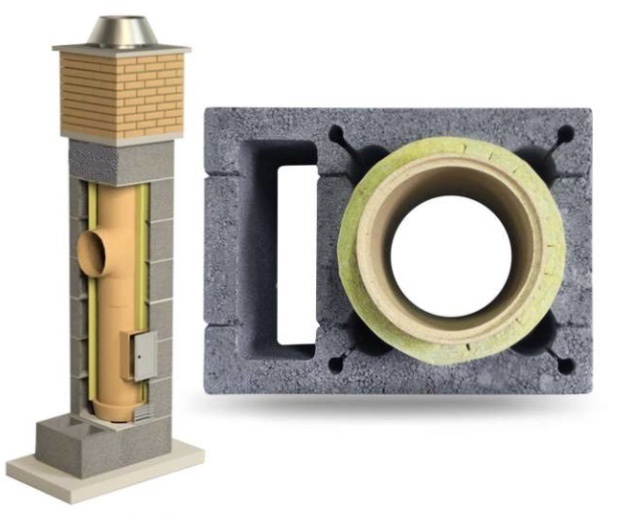

Chimney with 1 ventilation channel (360x500)

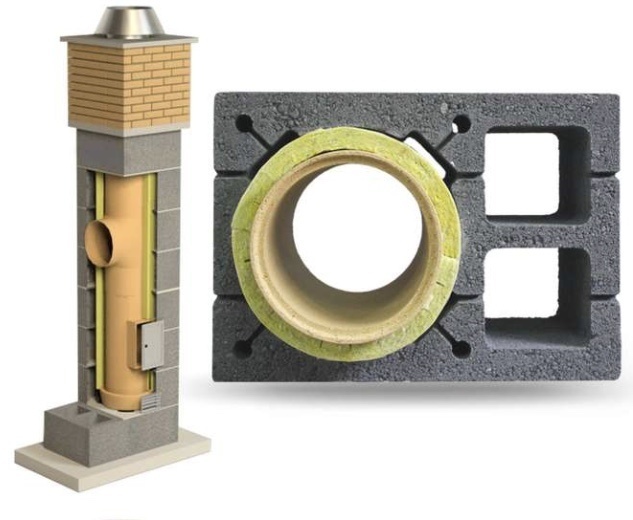

Chimney with 2 ventilation channels (360x560)
Important Installation and Operation Information
To ensure safe, efficient, and long-lasting chimney performance, the following requirements must be observed:
- Mortar layer thickness: 1.2 – 2.0 cm
- The chimney may be put into operation no earlier than 7 days after installation
- Before first use, gradual drying (gentle heating) is recommended
- Only fire-resistant materials suitable for the intended application may be used for finishing
- After installation, the chimney must be inspected and approved by a certified chimney sweep, who issues an acceptance certificate
- When connecting to metal pipes, a special adapter for ceramic chimneys must be used
- Proper ventilation and air supply in the room must be ensured during operation
- Do not exceed the operating parameters specified by the heating appliance manufacturer
Installation and Safety Requirements
- Installation must be carried out in accordance with the manufacturer’s instructions and applicable building regulations
- If installed along an external wall, the chimney must be reinforced with 8 mm reinforcement bars
- Reinforcement channels must be filled with liquid mortar

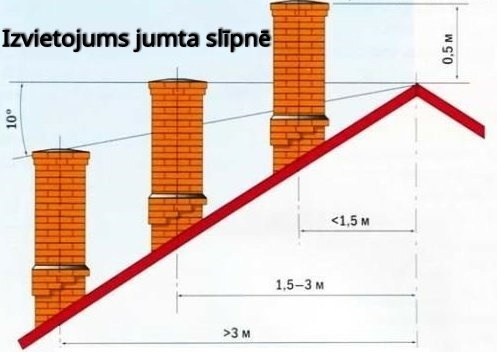

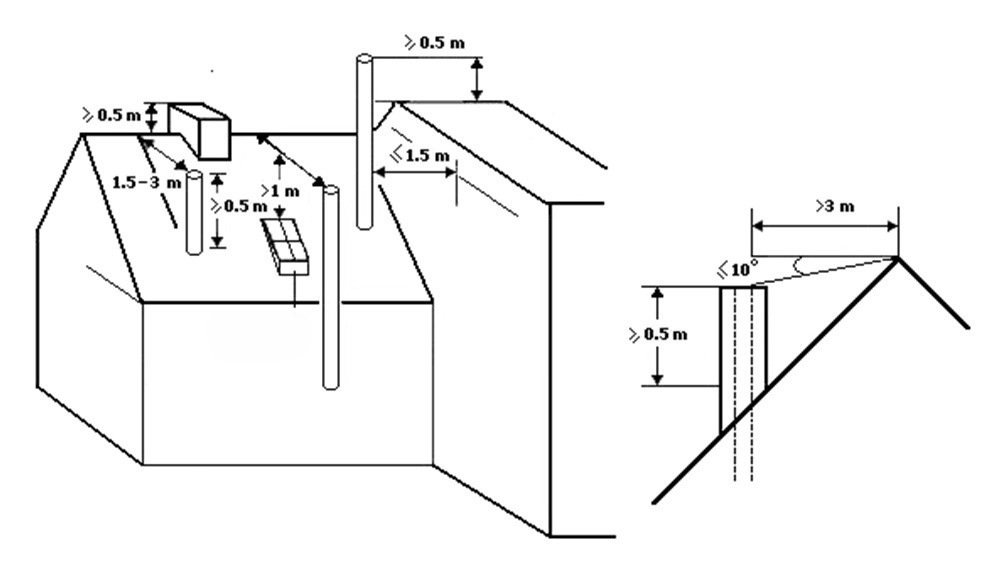

- If the chimney extends more than 1.5 m above the roof, additional reinforcement is required
- If it exceeds 3 m above the roof, the chimney must be reinforced and additionally secured with 3 guy wires
- The above-roof section must be protected from atmospheric exposure using appropriate finishing solutions
Maintenance and Operation
The chimney must be regularly cleaned and inspected in accordance with regulatory requirements to ensure safe and continuous operation
Warranty Conditions
The warranty for the chimney system is valid only if the complete chimney system is purchased and all installation and operation requirements are followed.
